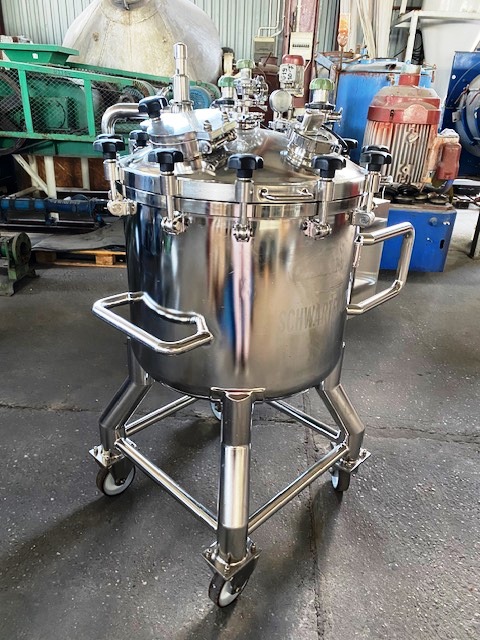

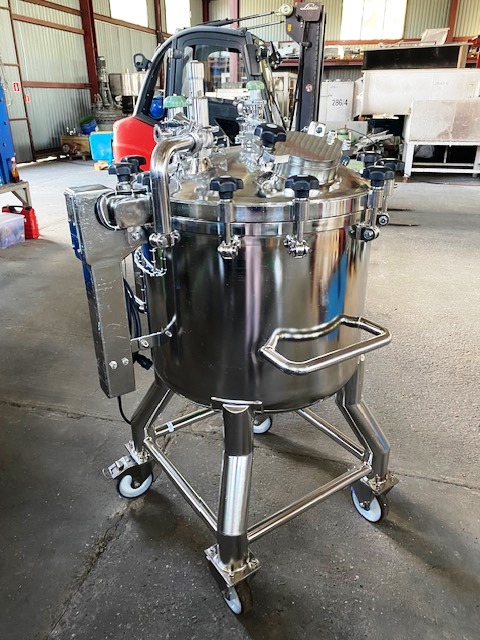

240 Litre Vertical Stainless Steel AISI 316L Mobile Aseptic Pressure Mixing Tank Schwarte-Milfor

Stock #U2422-13

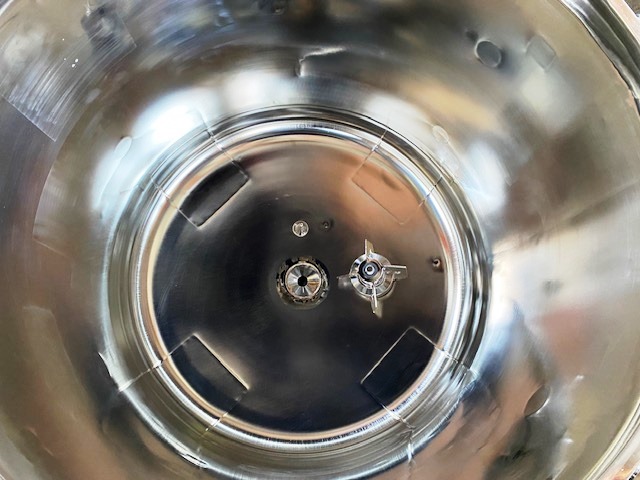

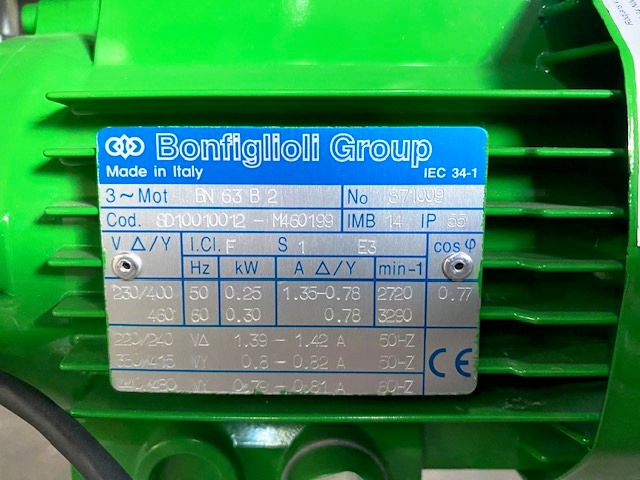

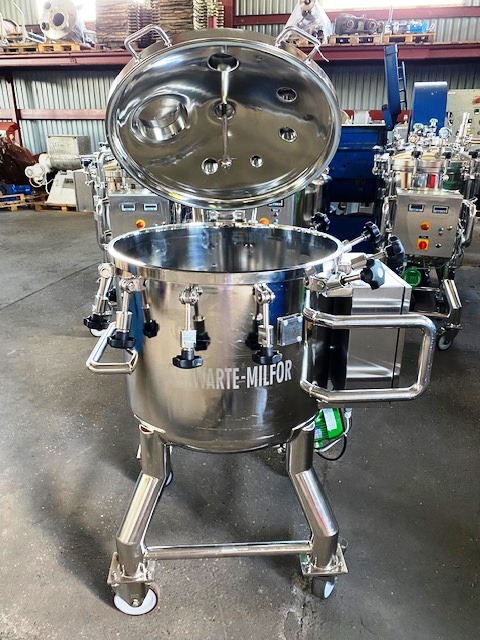

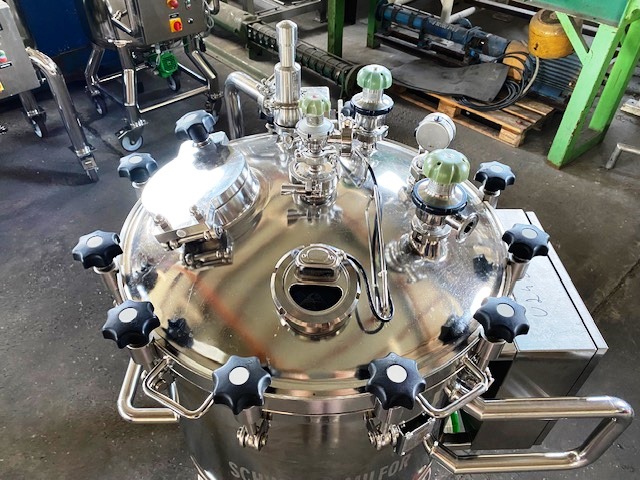

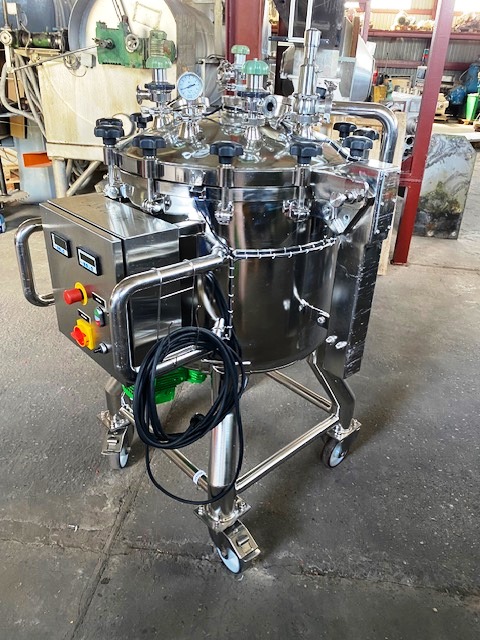

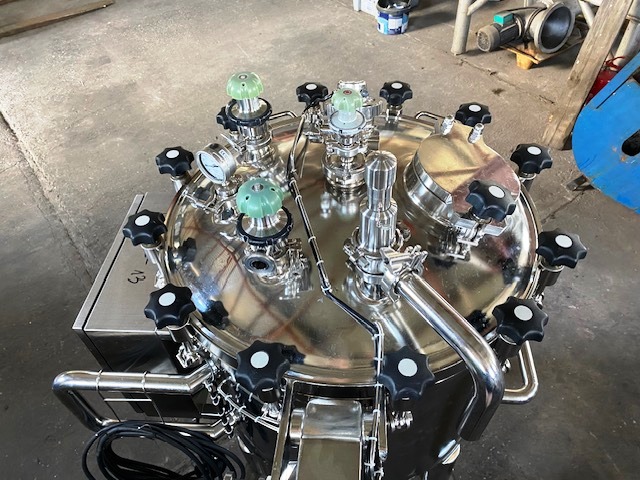

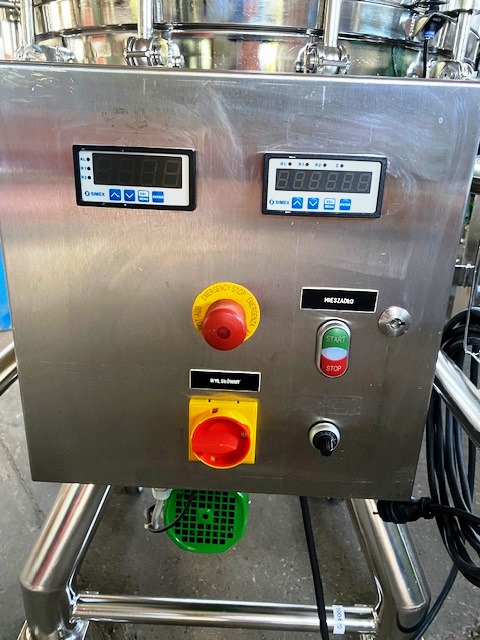

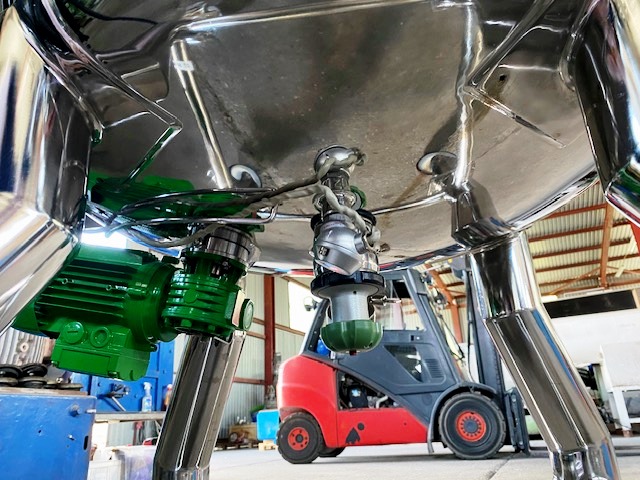

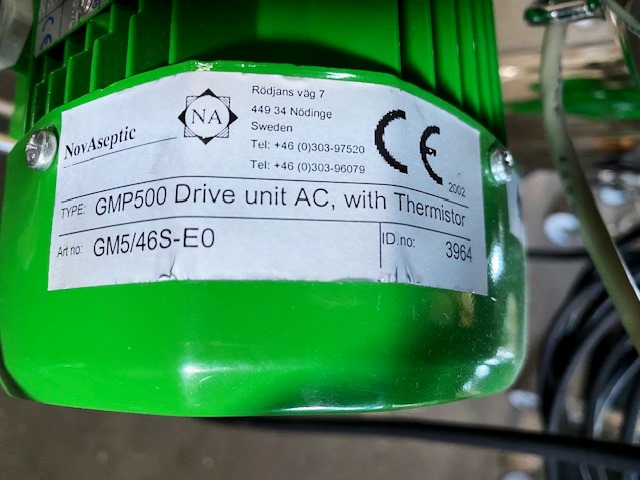

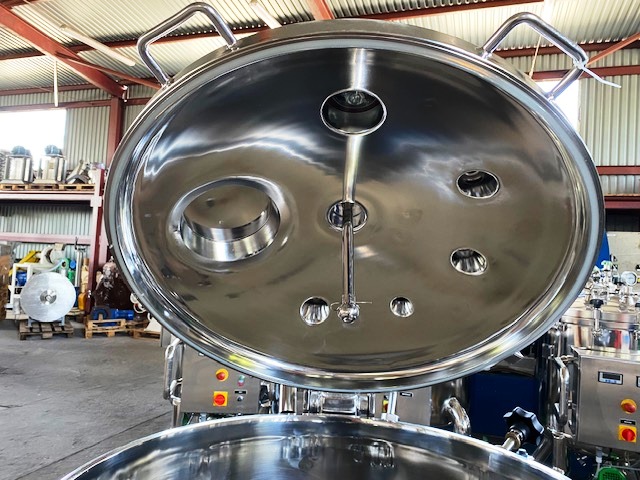

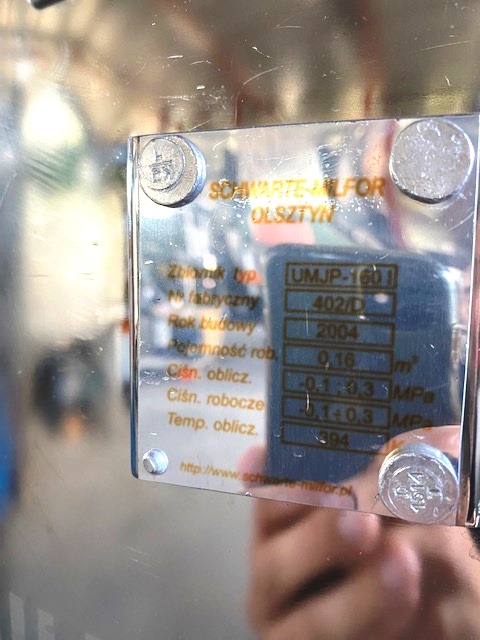

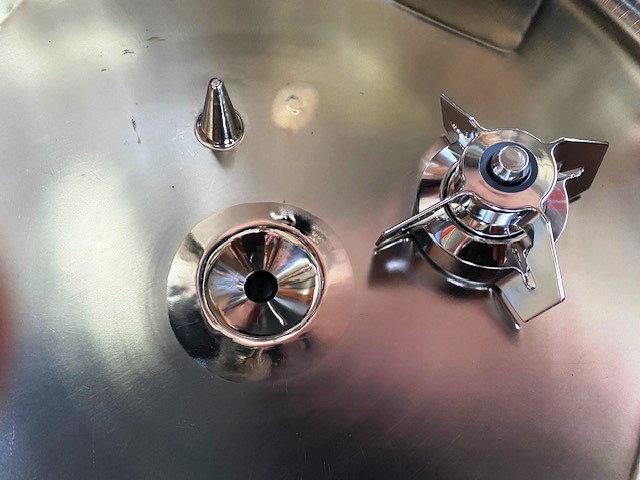

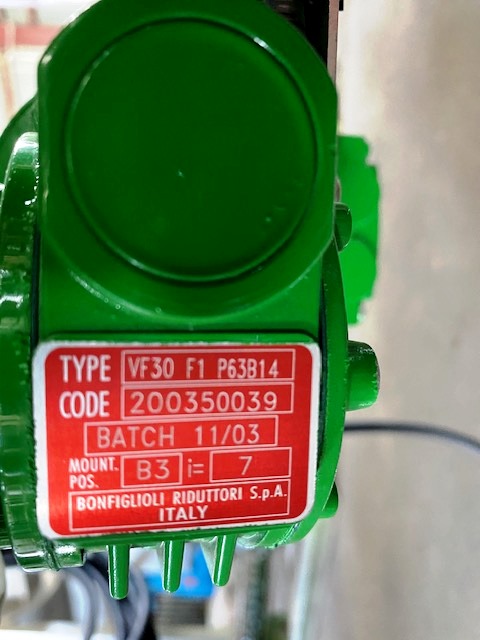

Used mobile vertical stainless steel AISI 316L aseptic pressure mixing tank with a total capacity of 240 l by Schwarte-Milfor Sp. z o. o. (Poland) type UMJP-160 l. Tank has a working volume of 160 l and is designed to operate at pressures ranging from -1 to 3 bar and temperatures up to 120 C. Internal dimensions: diameter 680 mm, length of straight wall line 530 mm. Machine has open hinged dished top, bolted with clamps. The top equipped with an inspection manway with an internal diameter of 150 mm and 6 stub pipes with mounted accessories. The tank has a welded dished bottom head equipped with a central outlet with a NovAseptic valve type NA. At the bottom, a NovAseptic magnetic stirrer type GMP 500 is installed, driven by gears (ratio i=7) and an electric motor with a power of 0.25 kW, 2720 rpm, 50 Hz. The agitator operates in the speed range from 80 to 410 rpm and is suitable for mixing liquid products with a viscosity of up to 800 cP. Machine is mounted on 4 legs equipped with wheels. The device is equipped with an ele. cabinet with a product temperature display and a stirrer speed display with a potentiometer for its adjustment. The equipment includes full technical documentation of the manufacturer and UDT in polish.

Location: Perry Poland Warehouse
